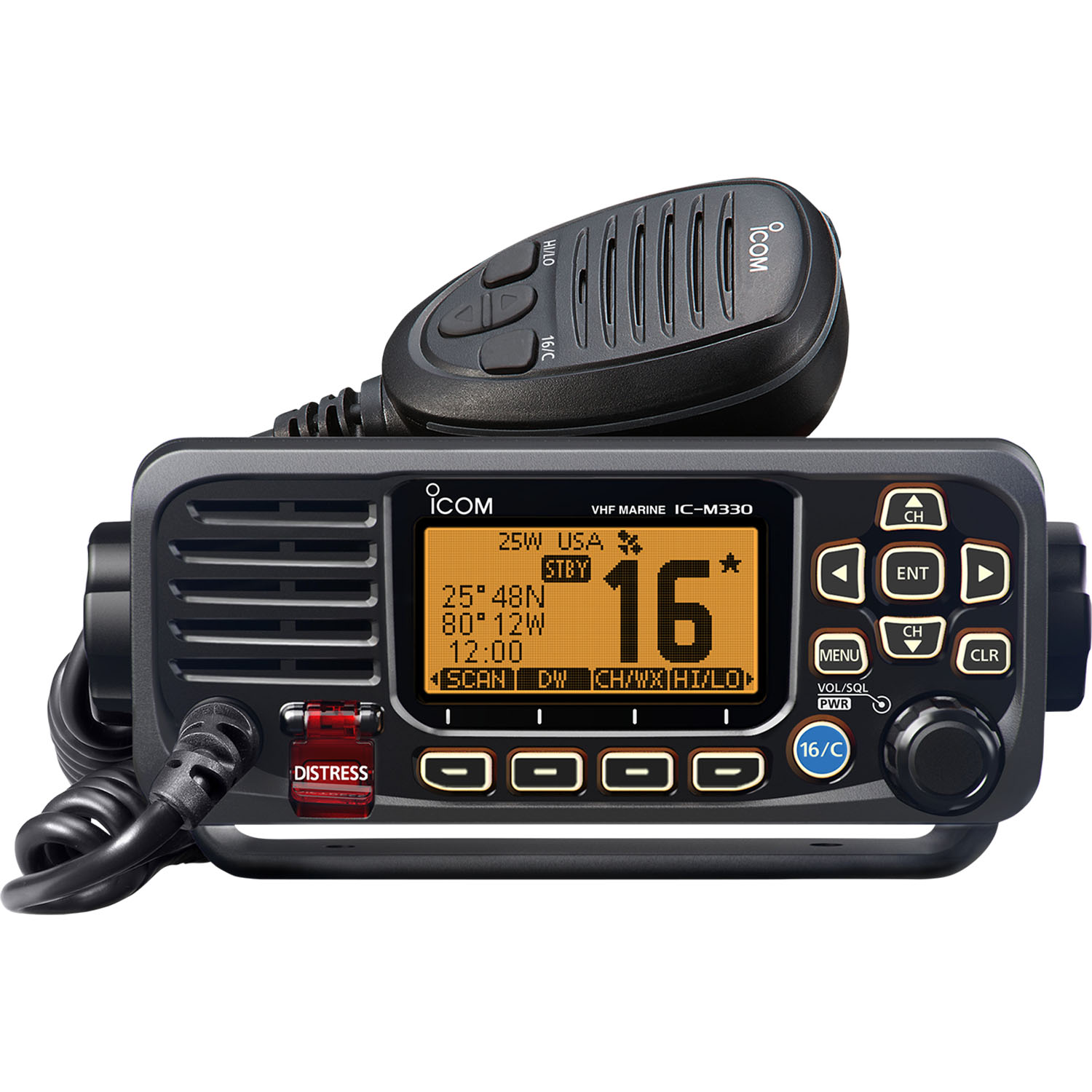

Icom M330 Fixed Mount VHF Radio - 25W, Ultra Compact, Class D DSC, AquaQuake, IPX7, Black

Ultra-Compact 25W VHF Radio with Class D DSC and Made in Japan Quality

The Icom M330 fixed mount VHF marine radio delivers professional 25-watt performance in an ultra-compact body that fits where other radios can't. At just 6.2 inches wide, this Class D DSC-equipped transceiver is ideal for boats with limited console space. Made in Japan with rigorous quality testing, the M330 features AquaQuake™ water draining technology, class-leading receiver performance (70+ dB selectivity and IMD), and IPX7 submersible construction. Perfect for center consoles, small cruisers, fishing boats, and sailboats where space is at a premium but professional communication capability is essential.

Key Features

• Ultra-Compact Design: Measuring only 156.5 × 66.5 × 110.1 mm (6.2 × 2.6 × 4.3 inches), the M330 is one of the smallest fixed mount VHF radios available. Installs easily in tight spaces on center consoles, small helm stations, and compact dashboards without sacrificing any features or power output.
• Class D DSC with Dedicated CH70 Receiver: Built-in Digital Selective Calling meets ITU-R M.493-14 standards and continuously monitors Channel 70 even while receiving another channel. Send one-button distress alerts with your position (requires external GPS via NMEA input), plus individual, group, all ships, urgency, safety, position request/report, polling request, and DSC test calls.
• Class-Leading Receiver Performance: Delivers reliable communication in RF-congested environments like marinas and busy harbors. Superior selectivity and intermodulation (IMD) performance of more than 70 dB ensures clear reception even with multiple nearby transmitters operating simultaneously.
• AquaQuake™ Draining Function: Icom's innovative water draining technology uses speaker vibration to clear water from the speaker grille, preventing audio degradation after spray or rain exposure. Maintains clear, distortion-free audio output even in wet conditions.
• New High-Performance Speaker: Redesigned speaker delivers dynamic, crystal-clear audio across a wide bass and treble range. Produces distortion-free sound even at maximum volume with 4.5W audio output power. Essential for noisy engine rooms and outdoor helm stations.
• IPX7 Submersible Construction: Waterproof to 1 meter depth for 30 minutes. Protects against heavy spray, rain, and accidental water exposure. Designed for harsh marine environments with sealed construction and corrosion-resistant materials.
• Intuitive Icom Marine User Interface: Combination of directional keypad and programmable soft keys provides simple, smooth operation. Most-used functions are assigned to soft keys for quick one-push access. Full dot-matrix display shows channel, mode, DSC status, and settings clearly.
• Made in Japan Quality: Manufactured at Icom's Wakayama plant with rigorous in-house testing and environmental testing before shipping. Icom's legendary reliability and build quality ensures years of dependable service in demanding marine conditions.
• Complete Channel Coverage: All USA, International, and Canadian marine channels plus NOAA weather channels with weather alert capability. Automatically scans weather channels and alerts you to emergency broadcasts.
• Advanced Scanning Functions: Dual/tri-watch monitors CH16 and/or your call channel while operating on another frequency. Tag scan and favorite channel functions let you create custom scan lists. Priority scan monitors critical channels.

Technical Specifications

• Frequency Range: Tx: 156.025–161.600 MHz / Rx: 156.050–163.275 MHz / DSC CH70: 156.525 MHz
• Channels: All USA, International, and Canadian marine channels plus NOAA weather channels
• Power Output: 25W High / 1W Low
• Type of Emission: 16K0G3E (FM voice), 16K0G2B (DSC)
• Waterproof Rating: IPX7 (submersible to 1m depth for 30 minutes)
• Receiver Sensitivity: Main: -13 dBµ typ (12 dB SINAD) / DSC: -5 dBµ emf typ (1% BER)
• Adjacent Channel Selectivity: More than 70 dB (Main) / More than 73 dBµ emf (DSC)
• Intermodulation: More than 70 dB (Main) / More than 68 dBµ emf (DSC)
• Audio Output: 4.5W typical at 10% distortion with 4Ω load
• Dimensions (W × H × D): 156.5 × 66.5 × 110.1 mm (6.2 × 2.6 × 4.3 inches) - projections not included
• Weight: Approximately 730g (1.6 lb)
• Power Supply: 13.8V DC nominal (11.7–15.9V DC operating range)
• Current Draw: Tx 25W: 5A / Rx Maximum Audio: 1A (at 13.8V DC)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Antenna Impedance: 50Ω (SO-239 connector)
• NMEA Formats: Input: RMC, GGA, GNS, GLL, VTG / Output: DSC, DSE, RMC, GSA, GSV
• Certifications: FCC Part 80, Industry Canada, ITU-R M.493-14 (DSC), IPX7 waterproof standard

DSC & Safety Capabilities

The M330 features full Class D Digital Selective Calling with a dedicated Channel 70 receiver that continuously monitors for distress and other DSC calls even while you're communicating on another channel. The dedicated DSC receiver meets ITU-R M.493-14 standards for reliability. Program your MMSI number once and gain instant access to one-button distress calling, individual calling to other DSC-equipped vessels, group calling, all ships calling, urgency and safety announcements, position request and report functions, polling request, and DSC test calls. When connected to an external GPS via the NMEA input, your position is automatically transmitted with distress calls, dramatically improving rescue response times. The DSC log stores received calls for later review. A large red DISTRESS button on the front panel provides immediate emergency access.

Icom Advanced Technologies

• AquaQuake™ Water Draining: Exclusive Icom technology vibrates the speaker to forcefully expel water from the speaker grille after exposure to spray or rain. Prevents muffled audio and maintains clear communication quality in wet conditions. Simply press the AquaQuake button and water is expelled in seconds.
• Intuitive Marine User Interface: Icom's purpose-built marine interface combines a 4-direction keypad with context-sensitive soft keys that change function based on the current operation. Most frequently used features are always one button press away. The full dot-matrix amber display shows channel number, transmit/receive status, DSC information, scan status, and settings simultaneously.
• Class-Leading RF Performance: Advanced receiver circuitry delivers superior selectivity and intermodulation performance exceeding 70 dB. This means reliable, clear communication even in crowded RF environments like busy marinas where multiple radios are transmitting simultaneously. Reduces interference and improves reception of weak signals.

Connectivity & Integration

The M330 features comprehensive NMEA 0183 input/output for integration with marine electronics. Connect an external GPS receiver to enable DSC position transmission for distress calls and position reports. The NMEA output provides DSC call information, GPS data relay, and navigation information to chartplotters and other equipment. An external speaker jack allows connection of the SP-37 or other 4-8Ω marine speakers for improved audio in noisy environments or when the radio is mounted in a location where the built-in speaker is difficult to hear. The supplied HM-235B hand microphone includes channel up/down keys and a quick-access CH16/Call channel button for convenient operation.

What's Included

• Icom M330 VHF marine transceiver (black)
• HM-235B hand microphone with coiled cord
• DC power cable with in-line fuse holder
• Mounting bracket kit with hardware
• Owner's manual and documentation
• Icom 3-year warranty

Ideal For

The M330 is perfect for boaters who need full-featured VHF communication in a compact package. Ideal for center console boats, small cruisers, fishing boats, sailboats with limited helm space, jon boats, bass boats, and any vessel where console space is at a premium. Popular with recreational boaters, fishermen, and small commercial operators who refuse to compromise on features or quality despite space constraints. The ultra-compact design makes professional marine communication possible on boats where traditional fixed-mount radios simply won't fit.

Optional Accessories

Enhance your M330 with genuine Icom accessories: MBF-5 flush mount kit for clean, recessed installation; SP-37 external speaker for improved audio output; MA-500TR Class B AIS transponder for vessel tracking and collision avoidance (fully compatible and integrates via NMEA); additional HM-235B/W microphones for dual-station installation. All Icom accessories are designed specifically for marine use with corrosion-resistant materials and waterproof construction.
