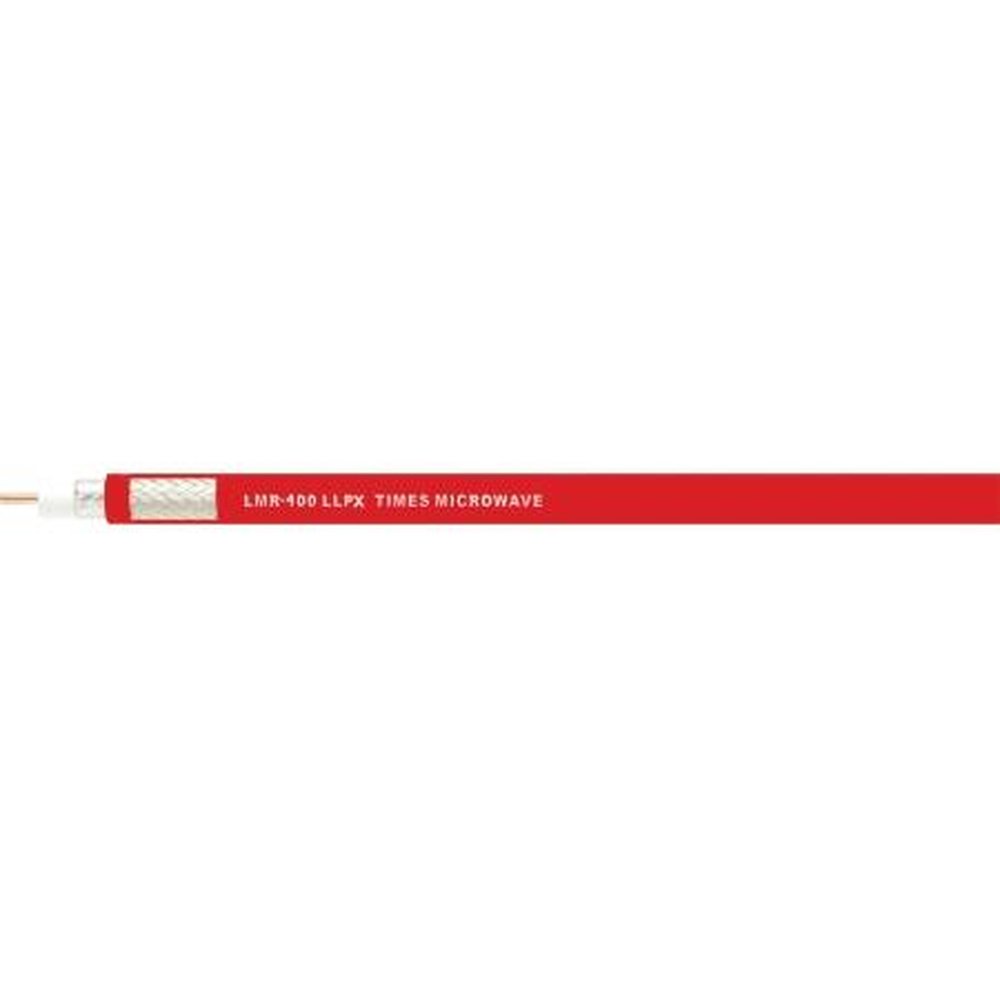

TIMES LMR-400-LLPX MICROWAVE LMR400 Cable.3/8" O.d.50 Ohms.Stranded Outer Conductor, Bare Copper Center Conductor.1.25" Bending Radius.CATV-P

The Times Microwave LMR-400-LLPX plenum-rated low loss coaxial cable with red CATV-P rated jacket is an indoor, fire retardant cable specifically designed for use in return air handling plenums. This 50 Ohm coaxial cable has a stranded outer conductor and bare copper center conductor. A 100 percent coverage foil, and 90 percent coverage braided shield prevents loss. It has a UL/NEC & CSA rating of "CMP" and "FT6" respectively.The…The Times Microwave LMR-400-LLPX plenum-rated low loss coaxial cable with red CATV-P rated jacket is an indoor, fire retardant cable specifically designed for use in return air handling plenums. This 50 Ohm coaxial cable has a stranded outer conductor and bare copper center conductor. A 100 percent coverage foil, and 90 percent coverage braided shield prevents loss. It has a UL/NEC & CSA rating of "CMP" and "FT6" respectively.The braided coaxial cable offers similar performance compared to corrugated copper cables but provides higher flexibility (1.25 in bending radius) and simplified connection.The Times LMR-400 plenum-rated coaxial cable is available in bulk and is priced per foot. The new LLPX has an extended temperature range (-40 deg. C – 125 deg. C), higher power handling, advanced chemical and UV resistance, and compliance of a red jacket for public safety and in-building applications. Read More
