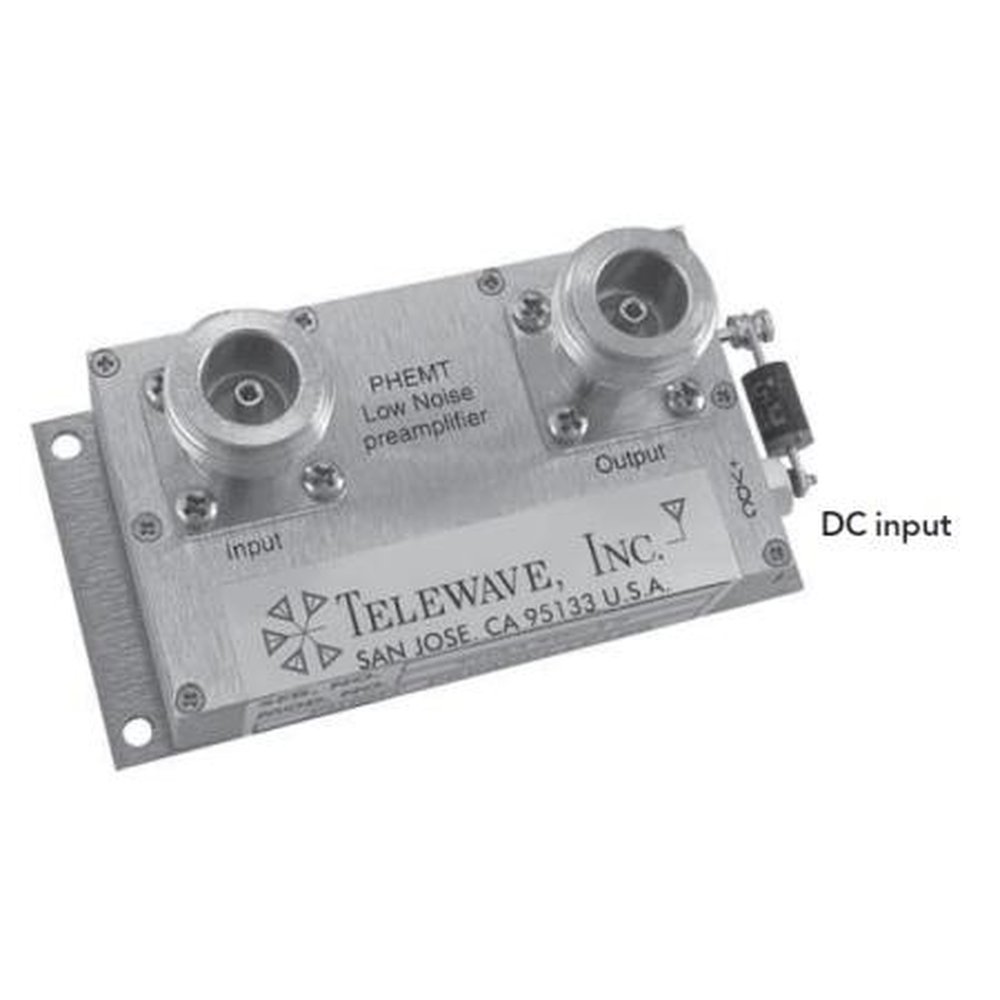

TELEWAVE TGA150-12/N 132-174 Mhz Low Noise Gaasfet Inline Preamplifier.15 Mhz Bandwidth, 12-18 VDC Power.N/f Conn.20 Db Gain.*factory Tune

TELEWAVE's TGA series in-line preamplifiers utilize PHEMT devices to amplify low-level RF signals by up to 18 dB. The primary application of these preamplifiers is to improve the noise figure of a receiver system to level as low as 0.4 dB. Preamps compensate for splitter insertion loss or losses from long coaxial cable runs, and increase signal levels to spectrum analyzers or other test equipment. Each preamplifier is housed in a…TELEWAVE's TGA series in-line preamplifiers utilize PHEMT devices to amplify low-level RF signals by up to 18 dB. The primary application of these preamplifiers is to improve the noise figure of a receiver system to level as low as 0.4 dB. Preamps compensate for splitter insertion loss or losses from long coaxial cable runs, and increase signal levels to spectrum analyzers or other test equipment. Each preamplifier is housed in a rugged, custom made, RF-tight aluminum enclosure. The DC input is reverse polarity protected, and equipped with a high-pass filter to eliminate RFI. NOTE: These preamplifiers are for receiver use only. They are not designed to accept transmitter power levels. Each preamplifier is housed in a rugged, custom made, RF-tight aluminum enclosure. The DC input is reverse polarity protected, and equipped with a high-pass filter to eliminate RFI. Read More
