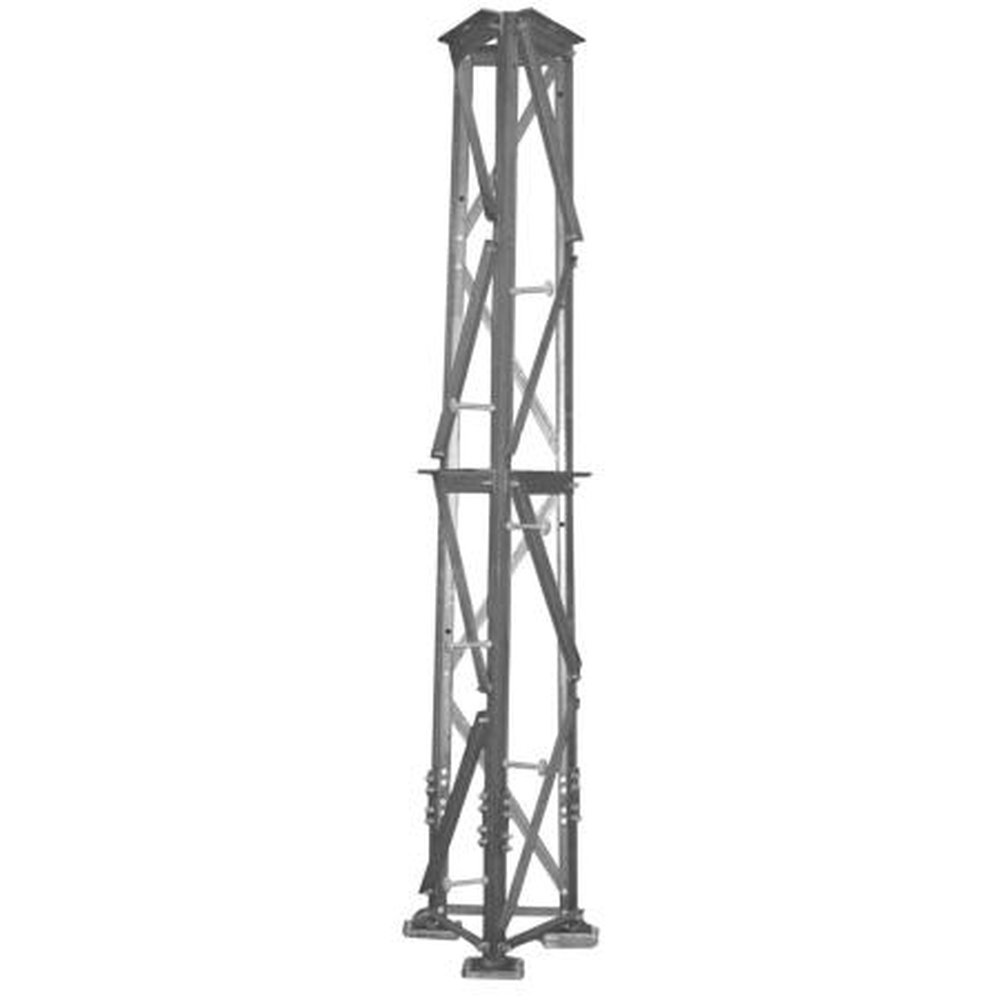

SABRE C05-109-711 S3A-LDA Series 7, 110-ft Self- Supporting Tower.Angle-Leg, Knock-Down Sections.Doesn't Include Anchor Bolts, Base Material,

The C05-109-711 LDA Series 7 110-ft self-supporting tower from Sabre Site Solutions is designed per ANSI/TIA/EIA-222-G-2005. This model LDA C05-109-711 tower is a three-legged self-supporting structure comprised of all-angle knock-down leg and bracing sections. All steel parts are completely hot-dip galvanized to ensure uncompromising corrosion protection in even the most severe climates.The C05-109-711 tower kit includes the main…The C05-109-711 LDA Series 7 110-ft self-supporting tower from Sabre Site Solutions is designed per ANSI/TIA/EIA-222-G-2005. This model LDA C05-109-711 tower is a three-legged self-supporting structure comprised of all-angle knock-down leg and bracing sections. All steel parts are completely hot-dip galvanized to ensure uncompromising corrosion protection in even the most severe climates.The C05-109-711 tower kit includes the main tower hardware only and consists of the tower legs, diagonals, splice plates, and connection hardware. This tower is designed for use with an anchor bolt type foundation. Foundation materials are ordered separately.Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for to recommend a tower for your particular application please fill out and submit a Tower Design Questionnaire. If you choose to purchase a tower from (as a kit or in parts) without submitting a Tower Design Questionnaire, you do so at your own risk. is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading. In other words, if you're not sure which tower you need fill out the Tower Design Questionnaire and we'll help you. Read More
